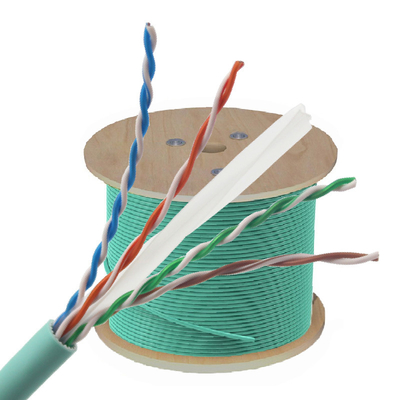

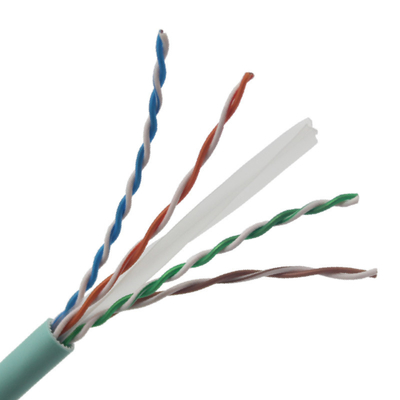

Cat6A 305m Network Lan Cable Unshielded 4 Pairs 23awg LSZH Cat6a Ethernet Cable
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | CAT6a UTP Lan Cable Indoor | Conductor Material | 100% Solid Bare Copper |
|---|---|---|---|
| Insulation Materials | Color-coded PE | Outer Sheath | LSZH |
| Reference Bandwidth | 750MHz | Cable Outer Diameter (mm) | 6.5±0.2mm |
| Color | Blue/Grey In Stock，Customized | Sample Status | In Stock |
| Highlight | Cat6A 305m Network Lan Cable,Unshielded Cat6a Ethernet Cable,LSZH Cat6a Ethernet Cable |
||
Product Description
LSZH jacket CAT6A CAT7 UTP FTP Cable pass fluke test 23AWG Solid Bare Copper PVC 1000ft
Category 6A UTP cable provides channel performance exceeding TIA and ISO/IEC 6A requirements when
used with 6A UTP connectivity. Category 6A UTP cable with cross separator uses a central pair separator
for optimal pair-to-pair crosstalk insolation as well as Internal Longitudinal Striation (ILS™) jacket---
Construction to reduce alien crosstalk (AXT) coupling between adjacent cables.
Features
- Pure Bare Copper Transmit Faster while Lasting the Distance than CCA
- Marked Every 1m (3.28ft) on Cable Makes Measuring Easy
- Support PoE, PoE+ and PoE++ (IEEE 802.3af/at/bt)
- CE, Reach, RoHS Certified and UL Listed
- CMR Rated (Riser) for Use in between Floors, in-Wall, and Non-plenum Spaces
- Tested with a Fluke DSX-8000 Versiv CableAnalyzer
Packaging & Delivery
1. Selling Units: Single item
2. Single catrton size: 50X40X40 cm
3. Single gross weight: 29.700 kg
4. Package Type: 305m per easy pull box, two boxes per outer carton box
| Product Name | UNSHIELDED TWISTED PAIR MULTI CORE CAT6a UTP CABLE INDOOR | |
| Inner Conductor | Material | 100% Pure Copper |
| Diameter | 0.57mm ± 0.01mm ( 23AWG ) | |
| Insulation ( Dielectric ) | MaterialThicknessDiameter | Color-coded PE (Polyethylene) |
| ≥ 0.21mm | ||
| 1.03mm ± 0.01mm | ||
| Cross Separator | Material | Plastic |
| Twisted Pair | N/A | Pair 1: Blue, White/ Blue |
| Pair 2: Orange, White/ Orange | ||
| Pair 3: Green, White/ Green | ||
| Pair 4: Brown, White/ Brown | ||
| Outer Jacket | Material | New LSZH (Rip code, Optional) |
| Thickness | ≥ 0.65mm | |
| Nominal O.D | 6.50mm ± 0.10mm | |
| Reference Standard | Category 6 UL444, ANSI/ TIA/ EIA 568B & ISO/ IEC11801 Stanard | |
| Rated Temperature | -20℃ to +70℃ | |
| Supports Transmission | Digital and analogue voice, data and video signal | |
Features
FAQ
Q1: What are the advantages of your price?
A1: We have our own factory, professioanl machinery equipment . We can meet the
price advantage of products with the same quality parameters, and we promise to
achieve a price of 1%-10% lower than that of our peers.
Q2: What is your quality advantage?
A2: We strictly according to the ISO9001 quality management system, insisting
"Enough Cores, Enough Meters, High Quality, High Performance". Providing
our customers with higher quality products and services.
Q3. Do you support customized brands?
A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts
to make the logo free for bulk orders.
Q4: What are the benefits of working with you?
A4: New customers can enjoy AIXTON’s stock and annual year-end dividends, and
support long-term cooperative customers to upgrade to global agents and enjoy more
discounted prices.
