Outdoor 2-12 Core Aerial Self Supporting Figure 8 Optical Fiber Cable With Steel Messenger

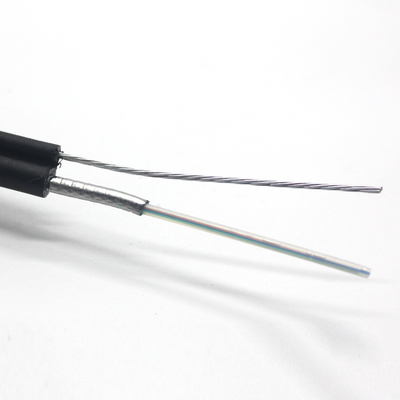

  • Outdoor 2-12 Core Aerial Self Supporting Figure 8 Optical Fiber Cable With Steel Messenger

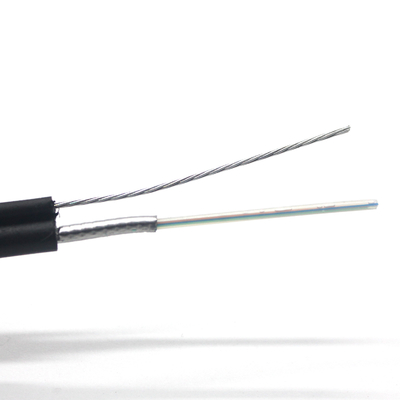

  • Outdoor 2-12 Core Aerial Self Supporting Figure 8 Optical Fiber Cable With Steel Messenger
Place of Origin CHINA
Brand Name Aixton
Certification ISO9001,CE,FCC,ROHS
Model Number AXT-GYXTC8Y-12
Minimum Order Quantity 10KM
Packaging Details 3KM Per Wooden Drum, Weight: 100KG/KM,115*115*80cm. OEM Size(4KM/5KM per drum) All Ok.
Delivery Time 15-20days
Payment Terms L/C, T/T, Western Union
Supply Ability 5000km every month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name GYXTC8Y Fiber Cable Fiber Count 12core
Package Wooden Drum Jacket Single PE Jacket
Cable Diameter 7.65mm±0.5mm Sample Status In Stock
Warrenty 3 Years Fiber Type G652D
Steel Wire 1.0*7
Highlight

Outdoor Figure 8 Optical Fiber Cable FCC

,

ROHS Figure 8 Optical Fiber Cable

,

Outdoor figure 8 fiber optic cable
Product Description

Outdoor 2-12 Core Aerial Self Supporting Figure 8 Optical Fiber Cable With Steel Messenger 0

                                                             Outdoor 2-12 Core Aerial Self Supporting Figure 8 Optical Fiber Cable With Steel Messenger 1

GYXTC8Y Figure 8 Self-supporting Outdoor Fiber Optic Cable 12core





The metal strength member of self supporting fiber optic cable is made up of stranded steel wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure. Corrugated steel tape armored and PE outer sheath providing crush resistance and gun shot resistance features. The steel-wire strength member as the central strength improves the tensile strength and it is surrounded by the loose tube and water blocking system. The impact structure ensures excellent mechanical and environmental performance.



Features

  • Central loose tube with jelly compound inside to protect the cladding fiber.

  • Corrugated steel tape laminated with plastic at both sides bonding to PE sheath.

  • Good mechanical and temperature resistant performance.

  • The cross-section in fig8 structure.

  • Crush resistance and flexibility.

  • Light weight and small diameter, easy to installation and operation



Application



  • Long distance and local area network(LAN) communication.

  • Aerial & conduit/duct application.

Optical Characteristics:

　 G.652 G.655 50/125μm 62.5/125μm
Attenuation @850nm 　 　 ≤3.0 dB/km ≤3.0 dB/km
(+20℃) @1300nm 　 　 ≤1.0 dB/km ≤1.0 dB/km
　 @1310nm ≤0.36 dB/km ≤0.40 dB/km 　 　
　 @1550nm ≤0.22 dB/km ≤0.23dB/km 　 　
Bandwidth (Class A) @850nm 　 　 ≥500 MHz·km ≥200 MHz·km
@1300nm 　 　 ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 　 　 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm 　 　

Technical Parameters:

Cable Type Fiber Count Cable Diameter mm Cable Weight kg/km Supporting Wire Spec Connection Diameter Tensile Strength Long/Short Term N Crush Resistance Long/Short Term N/100mm Bending Radius Static /Dynamic mm
GYXTC8S 2~12 7.65×14.5 118 Φ1.0mm*7 Height×Width 1000/2500 300/1000 80/160
Stranded wires 3.0×2.5 mm
GYXTC8S 14~24 8.2×15.1 129 Φ1.0mm*7 Height×Width 600/1500 300/1000 90/180
Stranded wires 3.0×2.5 mm

Product Details

Outdoor 2-12 Core Aerial Self Supporting Figure 8 Optical Fiber Cable With Steel Messenger 2

Outdoor 2-12 Core Aerial Self Supporting Figure 8 Optical Fiber Cable With Steel Messenger 3

Outdoor 2-12 Core Aerial Self Supporting Figure 8 Optical Fiber Cable With Steel Messenger 4

Outdoor 2-12 Core Aerial Self Supporting Figure 8 Optical Fiber Cable With Steel Messenger 5
