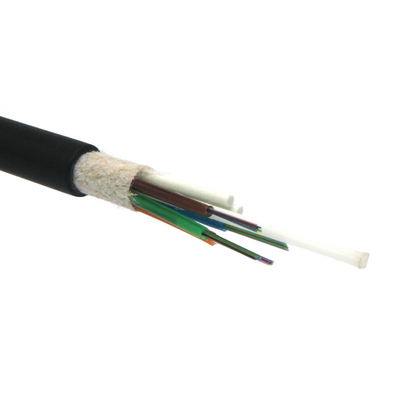

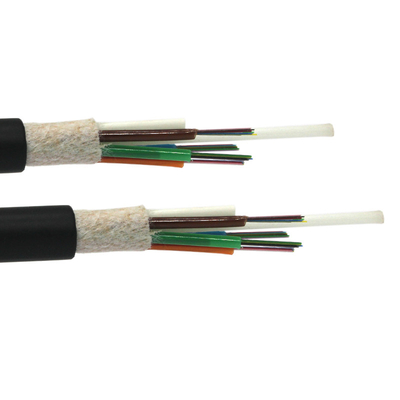

8 24 48 96 144 Core Fiber Optical Cable GYFTY Type Stranded Loose Tube
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | GYFTY Fiber Cable | Fiber Type | G652D/G657A1 |
|---|---|---|---|
| Number Of Fiber | 24F | Cable Diameter | 9.0±0.5mm |
| Outer Jacket Materail | PE | Package | Wooden Drum |
| Application | Overhead | Samples | Free |
| Highlight | GYFTY Type Fiber Optical Cable,Stranded Loose Tube Fiber Optical Cable,144 Core GYFTY Fiber Optic Cable |
||
Product Description
Manufacturer GYFTY stranded loose tube non-metallic strength member fiber optic cable 6 12 24 48core
GYFTY Outdoor Fiber Optic Cable is a non-metallic cable used for power transmission
system, excessive thunder areas and high electromagnetic interface. GYFTY fiber cable's
mainly application is for aerial or duct use. Fiber GYFTY cable FRP locates in the center of
cores as a non-metallic strength member. GYFTY cable is used in high-voltage area for long
distance communications. Incluid e-glass.
Characteristics
1. Low dispersion and attenuation;
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable
excellent mechanical and environmental properties;
3. With good antielectromagnetism ability;
4. Filler protect loose tuber fiber
Application
1. Adopted to Outdoor distribution;
2. Adopted to trunk power transmission system;
3. Access network and local network in high electromagnetic interfering places.
Optical Characteristics
|
G.652d |
G.655 |
50/125μm |
62.5/125μm |
||
|
Attenuation |
@850nm |
≤3.0 dB/km |
≤3.0 dB/km |
||
|
(+20℃) |
@1300nm |
≤1.0 dB/km |
≤1.0 dB/km |
||
|
@1310nm |
≤0.36 dB/km |
≤0.40 dB/km |
|||
|
@1550nm |
≤0.22 dB/km |
≤0.23dB/km |
|||
|
Bandwidth (Class A) |
@850nm |
≥500 MHz·km |
≥200 MHz·km |
||
|
@1300nm |
≥1000 MHz·km |
≥600 MHz·km |
|||
|
Numerical Aperture |
0.200±0.015NA |
0.275±0.015NA |
|||
|
Cable Cut-off Wavelengthλcc |
≤1260nm |
≤1480nm |
|||
Technical Parameters
|
Cable Type |
Fiber Count |
Tubes |
Fillers |
Cable Diameter mm |
Cable Weight kg/km |
Tensile Strength |
Crush Resistance |
Bending Radius |
|
Long/Short Term N |
Long/Short Term N/100mm |
Static/Dynamic |
||||||
|
GYFTY-24 |
12 |
4 |
2 |
9.0 |
70 |
600/1500 |
300/1000 |
10D/20D |
|
Storage/Operating Temperature : -40℃ to + 70℃ |
||||||||
FAQ
Q1:What are the advantages of your price?
Q2: What is your quality advantage?
A2: We strictly according to the ISO9001 quality management system, insisting "Enough Cores, Enough Meters, High Quality, High Performance". Providing our customers with higher quality products and services.
Q3. Do you support customized brands?
A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.
Q4: What are the benefits of working with you?
A4: New customers can enjoy AIXTON’s stock and annual year-end dividends, and support long-term cooperative customers to upgrade to global agents and enjoy more discounted prices.
