Passive Direct Attach Copper Twinax DAC Cable 2m SFP-H10GB-CU2M 10G SFP+
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Priduct Type | DAC Cable | Classify | SFTP |
|---|---|---|---|
| Conductor | Bare Copper | Insulation | FPE |
| Jacket | LSZH | Color | Black |
| Max Data Rate | 10Gbps | Wire AWG | 30AWG |
| Highlight | FCC Twinax DAC Cable,10G SFP+ Twinax DAC Cable,SFP-H10GB-CU2M Direct Attach Copper Cable |
||
Product Description
2m SFP-H10GB-CU2M 10G SFP+ Passive Direct Attach Copper Twinax DAC Cable
10G DAC CableCompatible 10G SFP+ 1m (3ft) Passive Direct Attach Copper Twinax DAC Cable
The SFP+ passive cable assemblies are high performance, cost effective I/O solutions for 10G
Ethernet and 10G Fiber Channel applications. SFP+ copper modules allow hardware
manufactures to achieve high port density, configurability and utilization at a very low cast
and reduced power budget. The high speed cable assemblies meet and exceed Gigabit
Ethernet and Fiber Channel industry standard requirements for performance and reliability.
Features
1. Support for multi-gigabit data rates up to 10.5Gbps
2. Data rates backward compatible to 1Gbps
3. Hot-pluggable SFP 20PIN footprint
4. I/O Connector designed for high speed differential signal applications
5. Improved Pluggable FormFactor(IPF) compliant for enhanced EMI/EMC performance
6. Compatible to SFP+ MSA
7. Temperature Range: 0~ 70 °C
8. RoHS Compatible
Applications
1. High capacity I/O Storage Area Networks
2. Network Attached Storage
3. Storage Servers
4. Switched fabric I/O
5. Data center cabling infrastructure
6. High density connections between networking equipment
Product Details
| Product Name | SFP-10G DAC cable |
| Connector Type | SFP+ to SFP+ |
| Max Data Rate | 10Gbps |
| Minimum Bend Radius | 23mm |
| Wire AWG26 | 30AWG |
| Cable Length | 1M,3M,5M |
| Jacket Material | LSZH,PVC |
| Cable Type | Passive Twinax |
| Temperature | 0 to 70°C |
| Power Consumption | <0.5W |
| Power SUpply | 3.3V |
| Warranty | 3 Years |

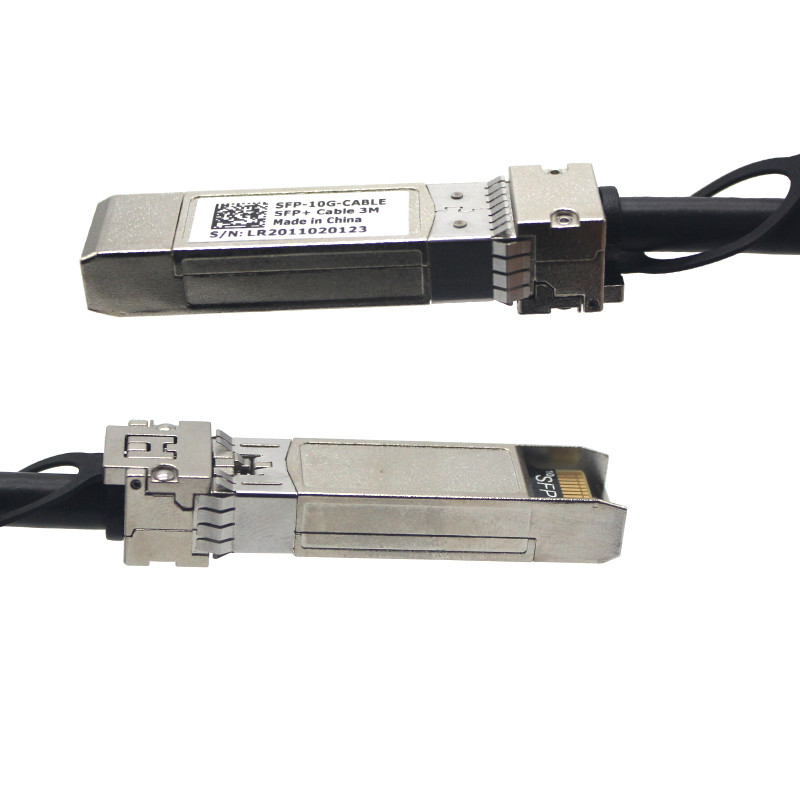

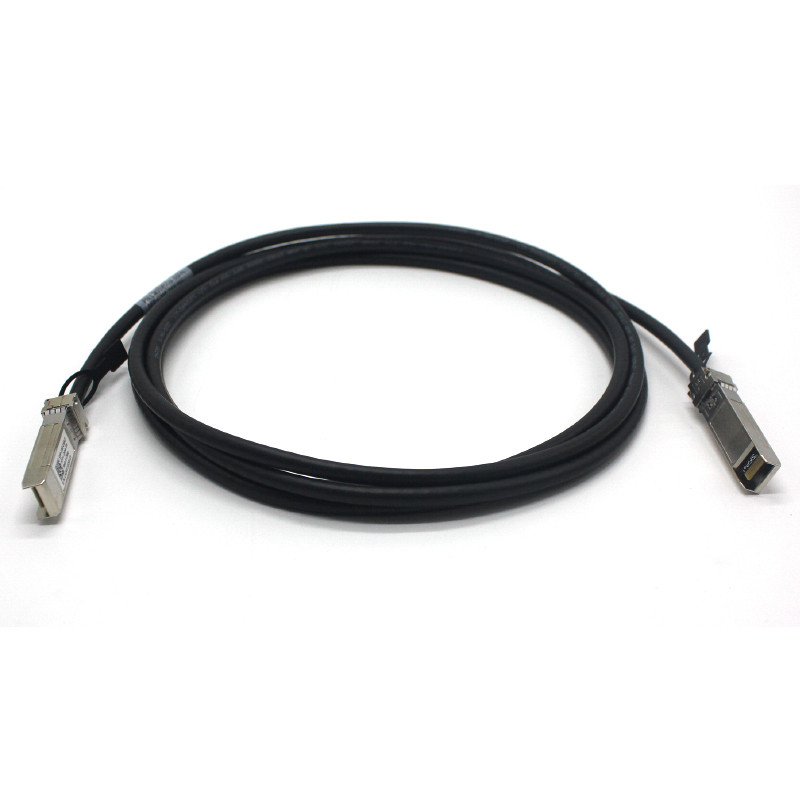

Product show
FAQ
Q1: What are the advantages of your price?
Q2: What is your quality advantage?
A2: We strictly according to the ISO9001 quality management system, insisting "Enough Cores, Enough Meters, High Quality, High Performance". Providing our customers with higher quality products and services. fibra óptica
Q3. Do you support customized brands?
A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.
Q4: What are the benefits of working with you?
A4: New customers can enjoy AIXTON’s stock and annual year-end dividends, and support long-term cooperative customers to upgrade to global agents and enjoy more discounted prices.
